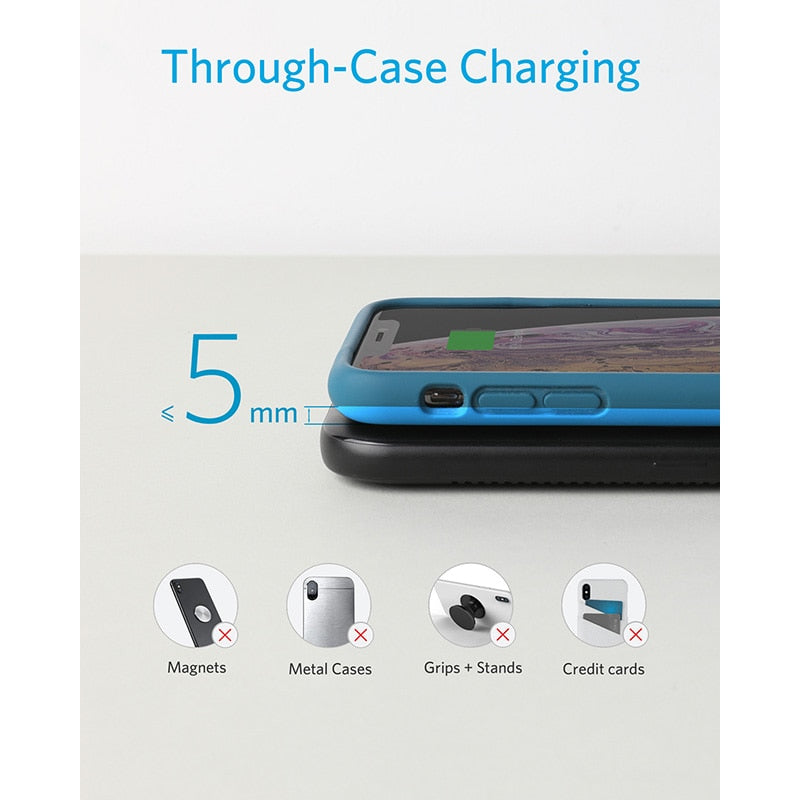

Through-Case Charging

PowerWave Base Pad supports charging through phone cases up to 5mm thick.

Cases made of metal, and external attachments such as magnets,

credit cards, grips, and stands will interfere with charging.

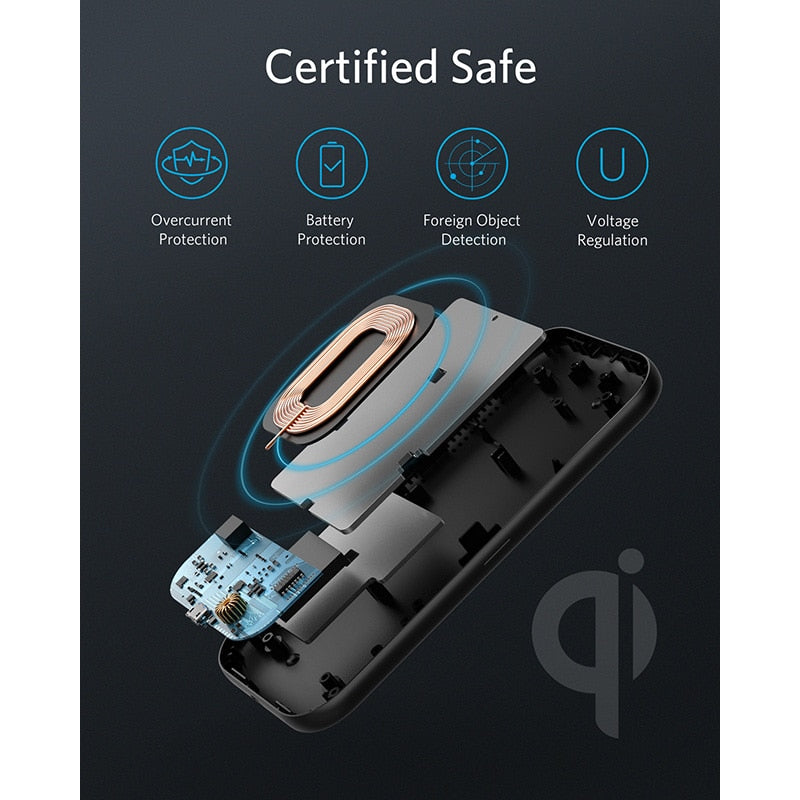

Superior Safety

Advanced temperature control, foreign object detection,

overvoltage protection,

and more combine to provide complete safety for you and your devices.

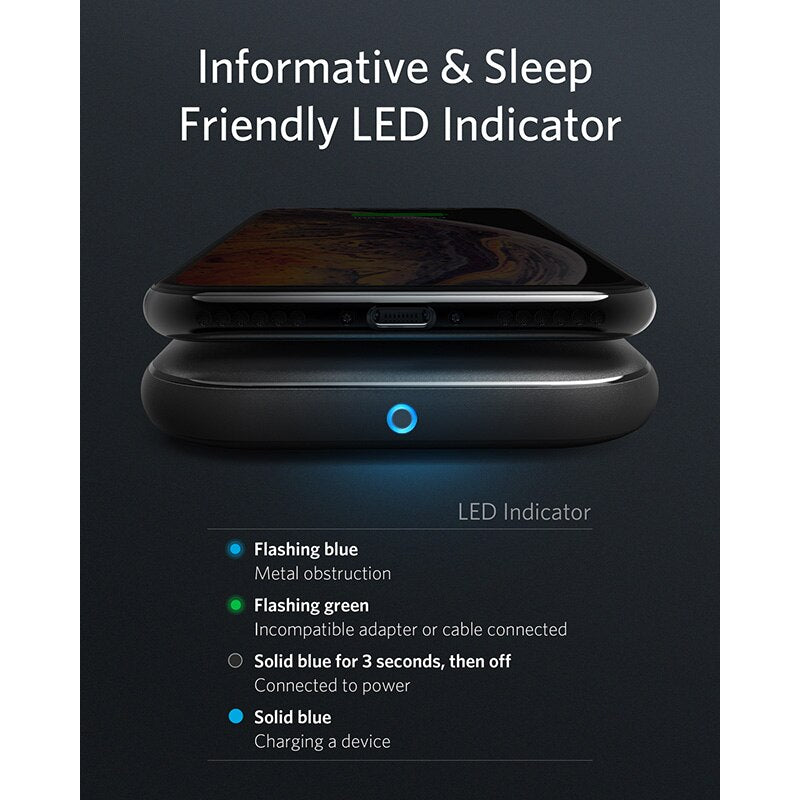

LED Indicator

Flashing blue - Metal obstruction detected

Flashing green - Incompatible AC adapter or cable connected

Solid blue for 3 seconds, then off - Connected to power

Solid blue - Actively charging a device



Quick Charge Recommended

A Quick Charge 2.0 or 3.0 wall charger is required for fast charging.

The standard charge mode also requires at least 5V/2A.

iPhone stock chargers are not compatible with PowerWave Base Pad.

Note: Please use the included cable for best results.

Temperature Control

The built-in vents work to dissipate heat,

keeping the pad cool to ensure safe and stable performance.



Model Number: A2505

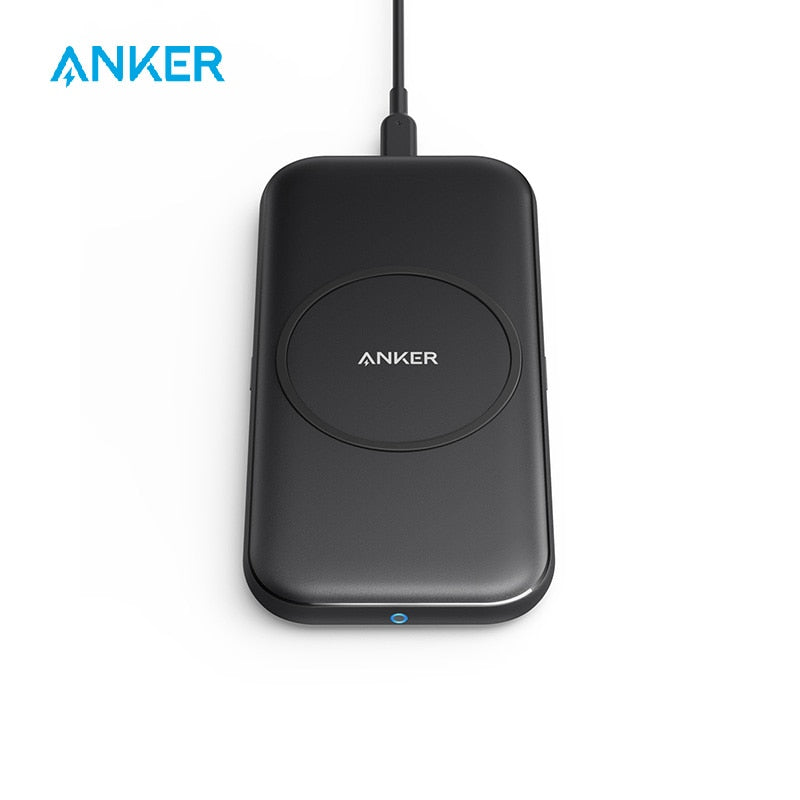

PowerWave Base Pad

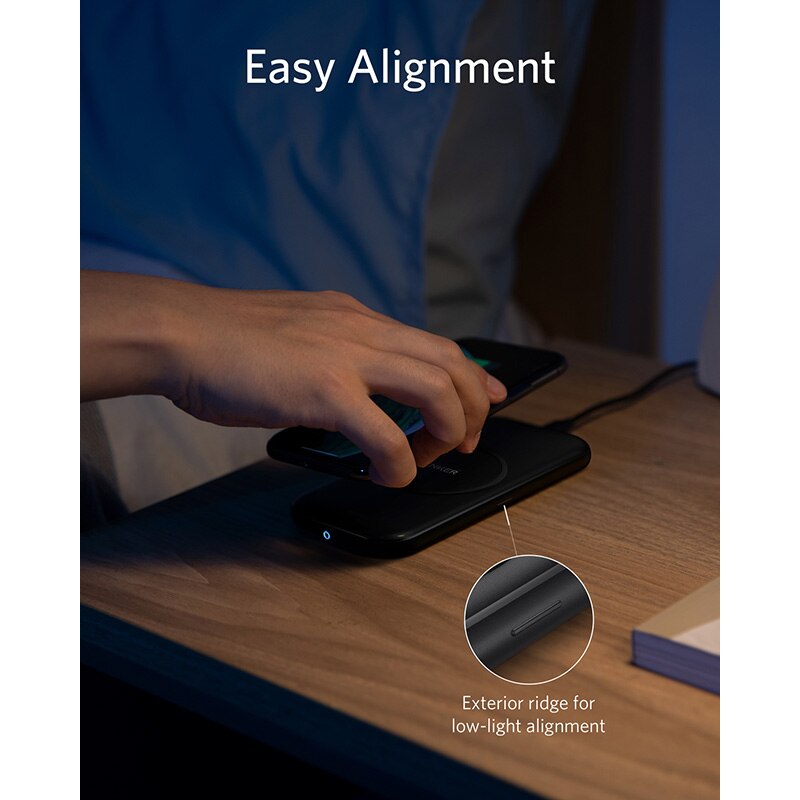

The Easy-Align Wireless Charging Pad

Optimized Design
The slimline design takes up minimal space on your desk or bedside table, while the rectangular shape makes wireless charging more intuitive than ever—simply line up your phone with the pad for stable, high-speed charging.

Superior Safety
Advanced temperature control, foreign object detection, overvoltage protection, and more combine to provide complete safety for you and your devices.

Just in Case
Don’t worry about taking your case off whenever you have to charge. PowerWave delivers charging power directly through cases up to 5 mm thick—including Otterboxes.

Input: 5V-2A / 9V-2A
Output: 5W / 7.5W / 10W
Compatibility:
10W Fast Charge Mode: (Using Quick Charge 2.0/3.0 Adapter)

• Samsung Galaxy S10 / S9+ / S9 / S8 / S8+ / S7 edge / S7 / S6 edge+

• Samsung Note 10 / Note 9 / Note 8 / Note 7

7.5W Fast Charge Mode: (Using Quick Charge 2.0/3.0 Adapter)

• iPhone 11 / 11 Pro / 11 Pro Max / XS Max / iPhone XR / iPhone XS / iPhone X / iPhone 8 / 8 Plus

5W Standard Charge Mode: (Using 5V/2A Adapter)

• All Qi-enabled phones and devices

• Pixel 3 / Pixel 3XL (The phone's screen will display the message: Charging slowly)

SPECIFICATIONS

Set Type: With USB Cable

Origin: CN(Origin)

Model: A2505011

Max. Output Power: 10W

Max Charge Equiement Number: 1-4

Features: With Charging Indicator

Features: With Cable

Connector Type: Micro USB

Compatible Brand: Apple iPhone

Certification: pse

Certification: FCC

Certification: CE

Certification: RoHS

Brand Name: ANKER
